Sprinkler Installation
Fire Sprinkler System Installation in Metro Vancouver
A fire sprinkler system is a water-based fire protection system that senses heat at the ceiling and discharges water through individual sprinkler heads directly over the fire, controlling it before it spreads. Poseidon Fire Protection designs, installs, tests and certifies fire sprinkler systems to NFPA 13 and the BC Building Code for general contractors, developers, property managers and strata councils across Metro Vancouver, the Fraser Valley and the Sea to Sky. Every project is delivered by Red Seal-certified sprinkler fitters and closes with the test records, certificates and as-built drawings your authority having jurisdiction and your owner need at turnover.
The Parts of a Fire Sprinkler System
A fire sprinkler system is an assembly of a riser, cross mains, branch lines, drops and sprinkler heads, held under a supervised water supply so that water is always available and any movement of it is reported.
Water enters the building at the riser, the vertical pipe carrying the control valve, the alarm check valve and the main drain. From there it is distributed through cross mains, then through branch lines above the ceiling, then down through drops to each sprinkler head. A head is a heat-activated valve: a glass bulb or fusible link holds it closed until the ceiling air reaches its rated temperature, at which point that head, and only that head, opens. The escutcheon trims the ceiling penetration and holds the head at the depth it was listed for.
The remaining parts exist so the system can be supervised and proved. A waterflow switch reports moving water to the fire alarm control panel. A tamper switch on every control valve reports that the valve has been closed, because a closed valve is the most common reason a sprinkler system does nothing at all. The inspector’s test connection simulates the flow of a single head so the alarm can be proved without opening the system. The fire department connection (FDC) on the exterior wall lets an arriving pumper boost pressure into the riser. Hangers and seismic bracing restrain the pipe against gravity and against the lateral movement a Metro Vancouver seismic design has to assume.
Components we install, wire and certify
- Riser, control valve, alarm check valve and main drain
- Cross mains, branch lines and drops
- Sprinkler heads and escutcheons: upright, pendent, sidewall, concealed
- Waterflow switches and tamper switches, wired back to the fire alarm panel
- Fire department connection (FDC) and inspector’s test connection
- Hangers, sway bracing and seismic restraint
Wet Pipe, Dry Pipe, Pre-Action and Deluge Systems
The type of a fire sprinkler system is defined by what sits inside the pipe before a fire – water, pressurised air, or air held back by a separate detection system – and it is chosen from the hazard, the occupancy, and whether the space can freeze.
A wet pipe sprinkler system is a fire sprinkler system whose piping holds pressurised water at all times, so that any head reaching its activation temperature discharges immediately. That immediacy makes wet pipe the default in heated space: offices, corridors, retail, suites. A dry pipe sprinkler system holds pressurised air instead, released by a dry pipe valve when a head opens, and it exists for one reason – unheated space. Parkades, loading docks and cold storage get dry pipe because water standing in an unheated line freezes, splits the pipe and takes the protection with it. An antifreeze system is a small wet system charged with a listed antifreeze solution for limited unheated areas where a full dry system cannot be justified.
A pre-action sprinkler system is a dry system whose valve will not open until a separate detection system has also alarmed, so two independent events are required before water enters the pipe. It protects data halls, server rooms and archives, where an accidental discharge is nearly as costly as the fire. A deluge system is the opposite: open heads with no heat element at all, on a valve that floods every head at once when detection triggers. In warehousing, an ESFR head is a large-orifice, high-volume ceiling sprinkler designed to suppress a rack fire from the ceiling rather than merely control it, which can remove the need for in-rack sprinklers – but only where the storage arrangement, aisle width and clearance below the head match what the system was calculated for.
NFPA 13, 13R and 13D: The Standard That Governs Your Building
NFPA 13 is the installation standard for fire sprinkler systems referenced by the BC Building Code, and it – with its residential variants NFPA 13R and NFPA 13D – sets how a system is designed, spaced, hydraulically calculated, tested and accepted.
Which of the three applies is a function of the building, not of preference. NFPA 13 is the full standard and governs commercial, institutional, industrial and high-rise work: it classifies the hazard of each space, sets the design density, and dictates head spacing and obstruction rules room by room. NFPA 13R is the variant written for low-rise residential occupancies, and it is why a wood-frame strata in Langley is sprinklered differently from a concrete tower in Burnaby. NFPA 13D covers one- and two-family dwellings. Getting this decision wrong at design stage is expensive: a system calculated to 13R in a building the AHJ reads as an NFPA 13 building is a system that gets redesigned after it is already in the ceiling.
A sprinkler system rarely stands alone. NFPA 14 governs the standpipes and hose valves sharing the riser in a high-rise, and NFPA 20 governs the fire pump that makes the hydraulic calculation work when the municipal supply cannot. Poseidon works to NFPA 13 and the BC Building Code and coordinates standpipe and pump scope on the same drawing set, so the water supply is proved once, as one system, instead of three times by three trades.
Hydraulic Calculations, Shop Drawings and the Permit
A hydraulic calculation is the engineering proof that the available water supply can deliver the required density of water over the design area at the hydraulically most demanding point in the system.
Design begins with the water, not the pipe. Poseidon pulls flow test data for the municipal main serving the site, establishes what pressure and volume are actually available at the property line, then works back through hazard classification, design area, density, head selection and pipe sizing to the calculation that proves the most remote head still receives what NFPA 13 requires of it. If the supply cannot carry the demand, that is the moment a fire pump or a stored-water tank enters the scope – and it is far cheaper to learn it in design than at the acceptance test.
The deliverable is a sealed shop drawing set: plans, riser diagram, hanger and seismic details, head schedule and the hydraulic calculation package, submitted to the authority having jurisdiction for permit. On a live site that set also has to survive coordination, because ductwork, structure, lighting and sprinkler drops all compete for the same ceiling space. We coordinate against the mechanical and electrical drawings before fabrication, answer the AHJ’s review comments and re-submit, so the general contractor is not holding a ceiling closure while a permit sits in redesign.
Installation, Hydrostatic Testing and AHJ Sign-Off
Commissioning is the stage that converts installed pipe into a certified fire sprinkler system: the finished system is hydrostatically tested, flushed, flow-tested and witnessed by the authority having jurisdiction before it is accepted.

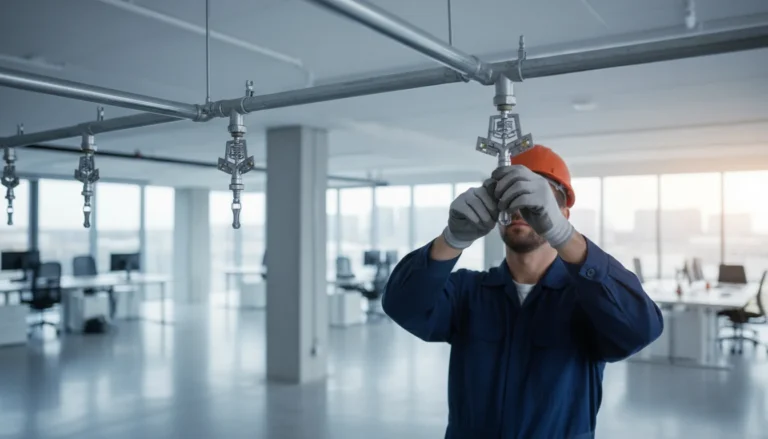

Rough-in runs with the building. Risers first, then cross mains and branch lines, hung and seismically braced as detailed, with drops left short until ceilings are established. Heads and escutcheons go in last, after the ceiling grid is set, which is why the head schedule and the reflected ceiling plan must agree before either is ordered. Waterflow and tamper switches are wired back to the fire alarm control panel and that interconnection is tested by both trades together, not separately: a waterflow switch whose signal never reaches the panel is a sprinkler system that operates in silence.
Then the system is proved. It is hydrostatically tested at the pressure and duration NFPA 13 requires and held with no loss. It is flushed, so construction debris is not left sitting in the cross mains waiting to obstruct a head. The inspector’s test connection is opened to demonstrate that the flow of one head produces an alarm. Valves are exercised, the FDC is checked, and the AHJ witnesses acceptance. Poseidon closes the file with a turnover package the general contractor can hand straight to the owner.
What you receive at turnover
- Contractor’s material and test certificates for above-ground and underground piping
- Hydrostatic and flow test records
- Stamped as-built drawings and the final hydraulic calculation set
- Head schedule, spare head cabinet and the correct sprinkler wrench
- Valve, riser and FDC identification signage
- Operation and maintenance documentation for the owner’s ITM file
Who Fire Sprinkler Installation Is For
The buyer of a fire sprinkler installation is almost never the occupant – it is the general contractor, developer, property manager or strata council carrying the schedule, the budget and the code liability for the building.
For a general contractor, the sprinkler subcontractor is a schedule risk: drawings that stall at the AHJ, a hydrostatic test that fails late, or a missing test certificate can hold occupancy on a building that is otherwise finished. For a developer the decision lands earlier and lands in the pro forma – NFPA 13 or 13R, pump or no pump, ESFR or in-rack. For a property manager or strata council, sprinkler work is usually a tenant improvement, a suite reconfiguration or a retrofit: a demising wall moves, a ceiling drops, a unit changes use, and the head layout that was calculated for the old plan is no longer the layout hanging in the ceiling.
Poseidon Fire Protection has been installing fire sprinkler systems since 2019 from Port Coquitlam, and works in Vancouver, Burnaby, Surrey, Richmond, Coquitlam, Port Moody, New Westminster, Langley, Maple Ridge, Delta, North Vancouver and Abbotsford, out to Squamish, Whistler and Pemberton. Installations are performed by Red Seal-certified sprinkler fitters with ASTTBC-registered technical oversight. We are COR certified, our WorkSafeBC coverage is in good standing, and we carry commercial general liability insurance and bonding capacity – certificate of insurance and clearance letter provided on request. Associa, Bosa Properties, FirstService and Marcon are among the organizations we work with.
How Fire Sprinkler Systems Fail
A sprinkler system failure is rarely a failure of the sprinkler head – it is a closed control valve, a frozen or corroded pipe, an obstructed head, or a waterflow switch whose signal never reached the panel.
The closed valve is first and worst. A control valve shut for maintenance and never reopened silently removes protection from everything downstream, which is why every control valve carries a supervised tamper switch and why a valve left closed is treated as an impairment requiring a fire watch until protection is restored. Freezing is second: a dry system with water trapped in a low point, or a wet line run through an unheated parkade, will split. Corrosion, including microbiologically influenced corrosion, pinholes pipe from the inside, most often in dry and pre-action systems where air and water share the same steel.
The rest are occupancy failures. Heads get painted, wrapped, hung from, or blocked by a new partition. Storage gets stacked into the clearance the hydraulic calculation depends on, so an ESFR head can no longer reach the fire it was designed to suppress. A ceiling is renovated and the drops stay where they were. None of this surfaces until the system is tested, which is the argument for keeping it on the inspection, testing and maintenance cycle set by NFPA 25 and closing the deficiencies that cycle finds – rather than discovering them during an incident.
Frequently Asked Questions
Who is responsible for the sprinkler shop drawings and the permit?
The sprinkler contractor is responsible for the shop drawings, the hydraulic calculations and the permit submission to the authority having jurisdiction. Poseidon produces the sealed drawing set – plans, riser diagram, head schedule, hanger and seismic details and the calculation package – submits it for permit, answers the AHJ’s review comments and re-submits. The general contractor does not carry that submission.
What is the difference between an NFPA 13 and an NFPA 13R system?
NFPA 13 is the full sprinkler installation standard and governs commercial, institutional, industrial and high-rise buildings; NFPA 13R is the variant written for low-rise residential occupancies. The choice is determined by the building, not by preference, and it changes head selection, design density and pipe sizing – so it has to be settled before drawings are produced, not after pipe is in the ceiling.
Can sprinkler work be done in an occupied building without shutting the system down?
Most sprinkler alterations require the system to be drained, which means a planned impairment. Poseidon schedules the shutdown, tags the impaired control valve, arranges the fire watch or temporary protection required while the system is out of service, and restores and re-tests the system before leaving site, so the building is never quietly unprotected.
What documentation do we receive when the system is turned over?
The turnover package contains the contractor’s material and test certificates, the hydrostatic and flow test records, stamped as-built drawings, the final hydraulic calculation set, the head schedule and spare head cabinet, valve and FDC signage, and the operation and maintenance documentation the owner needs to open an ITM file. It is assembled so a general contractor can hand it straight to the owner at occupancy.
What is an ESFR sprinkler and does our warehouse need one?
An ESFR (early suppression, fast response) sprinkler is a large-orifice ceiling head designed to suppress a rack fire from the ceiling rather than control it, and in the right storage arrangement it can eliminate the need for in-rack sprinklers. It only works if the racking layout, aisle width and clearance below the head match the design, so an ESFR building that later changes how it stores product may no longer be protected as calculated.
Is Poseidon insured and bonded for commercial sprinkler work?
Poseidon Fire Protection carries commercial general liability insurance and bonding capacity, is COR certified, and holds WorkSafeBC coverage in good standing. A certificate of insurance and a clearance letter are provided on request for prequalification.
Related Fire Protection Services
A sprinkler system is only as good as its water supply and its supervision. The fire service connection feeding your riser generally requires its own backflow prevention assembly, and the waterflow and tamper switches on that riser terminate at the panel we install under fire alarm installation. Once the system is accepted, it moves onto a fixed inspection, testing and maintenance cycle – and if a valve is found closed or a pipe lets go before then, that is an impairment and emergency response call.
